Guide to fitting Vauxhall Opel / Saab 1.9 16 150 TID swirl bar repair kit

Before you start, check out the new guide on page 5 which provides slightly easier instructions and a link to a much cheaper swirl flap bar repair kit (y)

Both @Jimmy-James instructions and the one posted by myself on page 5 are well worth reading and cross referencing
;)



Here it is then for those that are interested, it took about 30 minutes from start to finish and they really do pop on snugly like the seller promised, well worth doing! Their site is HERE and you can buy a set of 4 (for just over £37) from the German eBay HERE

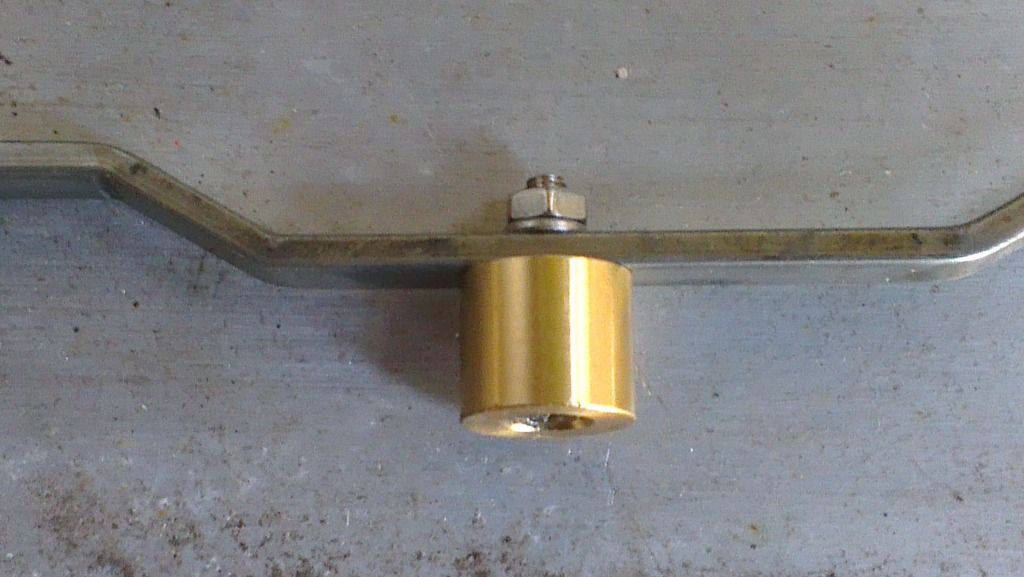

Here you can see how much more substantial the kit is than the plastic connections Pierberg supply.

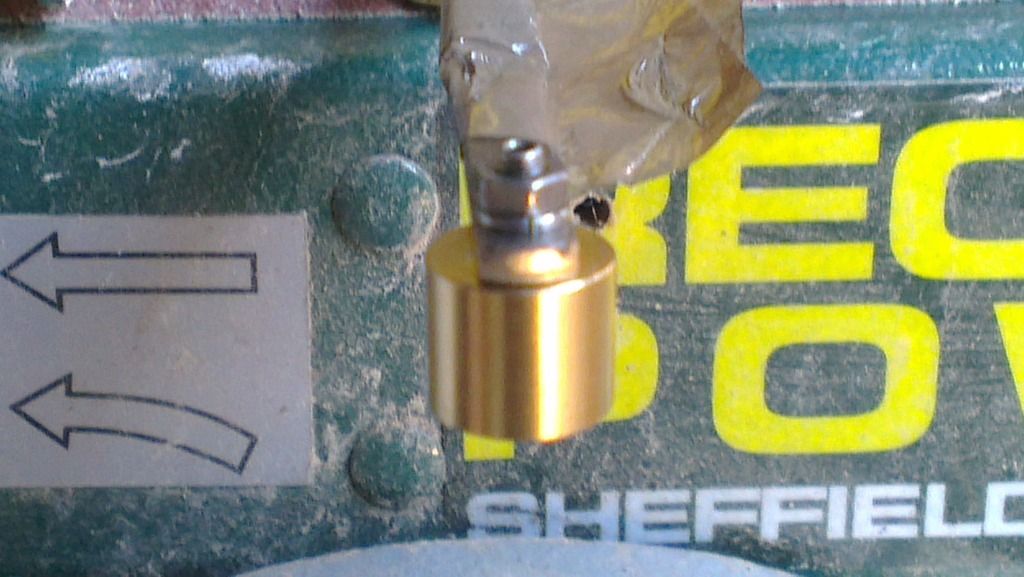

As supplied in the kit, does not allow the control arm to fall over due to better support.

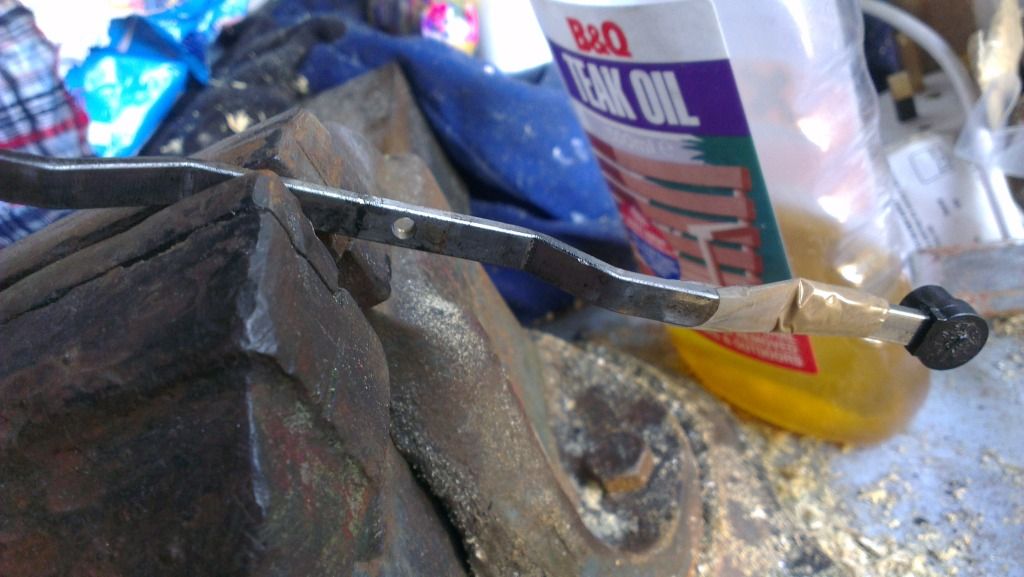

Stock showing the control rod falling over causing premature wear. If you have never looked at this part of your engine i strongly suggest you do so. We have a Zafira 1.9cdti 150 Sri and it wasn't connected at all, it was just rattling around loose!

Step one is to make sure the flaps are free and if not gently try to free them with a little WD40, Plus Gas or similar. When this is done you can get cracking. DO NOT force the flap 3rd in from the right (or second from the left) this is the control flap which is connected to an actuator on the bottom of the manifold.

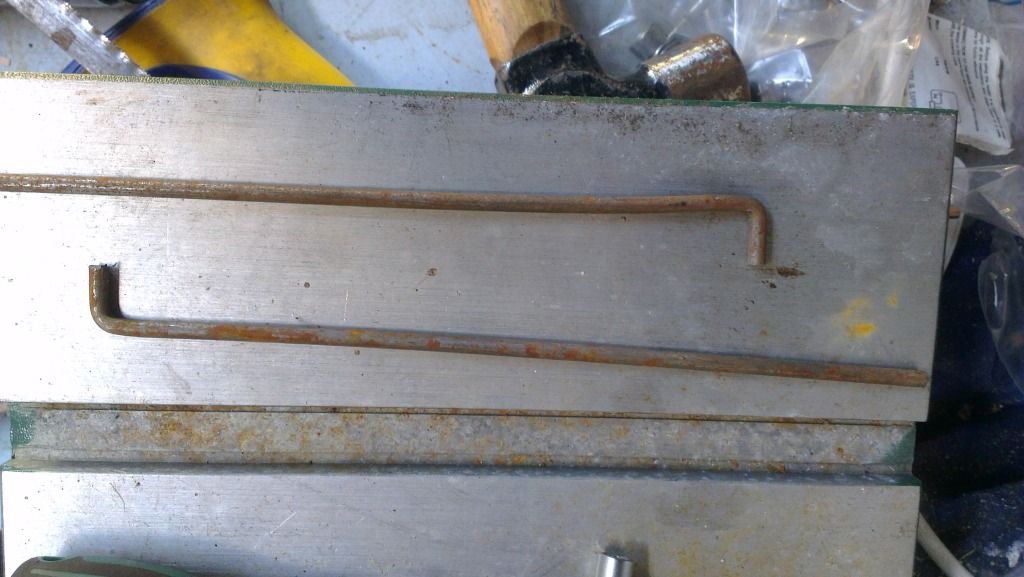

I had to make a couple of hooks to remove the rod and to aid in the positioning of the modified rod when finished, i dont think you will manage very well without them, bent coathanger wire is adequate.

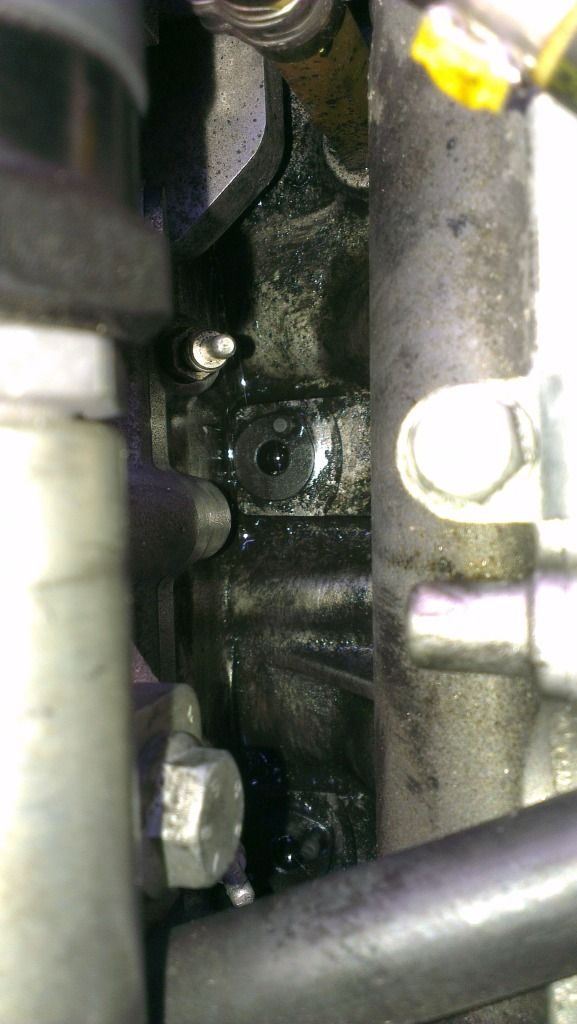

I followed the instructions and removed the glow plug connectios and pulled the wires out of the way as best i could without forcing them which left me access to remove the rod and left me with this, time to break out the carb cleaner and cloths to clean. When removing the rod remembr the orientation for re-assembly by marking the rod, i used a piece of masking tape. There isn't a lot of space to work here so a paintbrush, microfibre and a screwdriver wouldn't go amiss. Once clean i sprayed with teflon grease to lubricate the mechanism.


Now the rod is out it was time to remove the old, worn plastic connections. I removed them by placing the rod in a vice taking care not to bend it and removed the plastic sockets with a hammer and a small chissel. BEWARE, using this method causes plastic parts to fly off at quite a rate, please make sure to use the correct protective equipment!

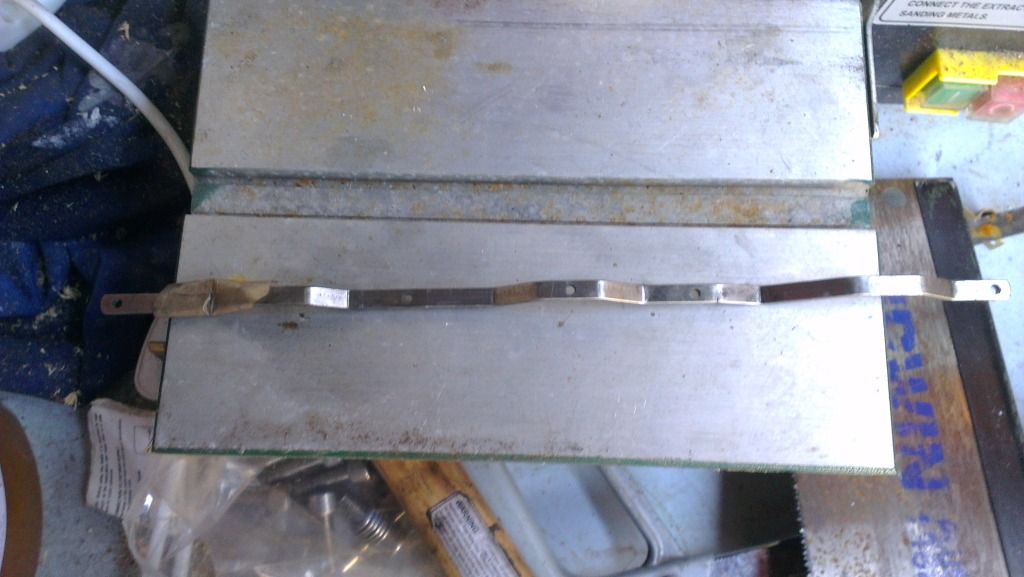

I was then left with this.

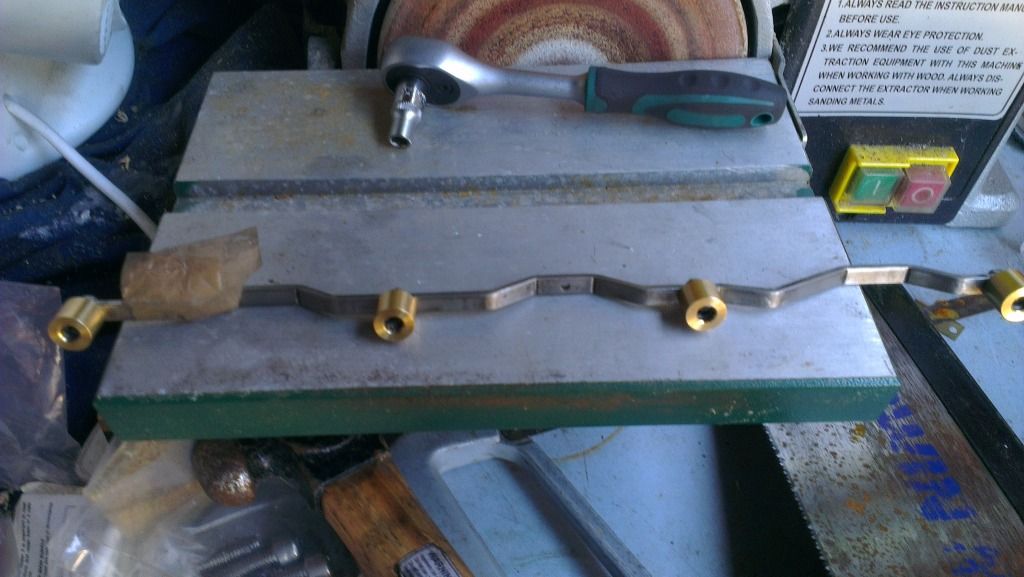

I had to run a 3mm drill bit through the rod because the fitment was slightly too tight. Once this was done i installed the swirl repair kit which, when finished looks like this.




Check the nuts are done up tight, but not silly tight, they need enough pressure to squash the spring washer and a little bit more for luck! Using the hooks mentioned earlier and observing the orientation of the rod, simply line it all up on top of the swirl's and pop the conections on with a long screwdriver. They make a nice positive contact and it will be very obvious when they are located correctly. You will notice when its installed that the rod now sits as it should (upright) with only minimum movement. You are almost finished, all that is left is to re-connect the glow plug connectors, reconnect the battery and test it before putting the engine cover on. You will need a second person for this to slowly apply the accellerator while you check the movement of the swirls


If everything is well, pop the engine cover on and feel proud of your achievment, go out and enjoy your car knowing that your swirls are operating as they should!


·
Well-known member
Joined
·
28,308 Posts
You seem to be on a roll Jimmy (y)

I've moved this as the 1.9dth is fitted into so many vehicles that it limits it's exposure by just having it in one technical forum.

Make sure you take some pictures along the way ;)


·
Registered
Joined
·
63 Posts
Discussion Starter #3
You seem to be on a roll Jimmy (y)

I've moved this as the 1.9dth is fitted into so many vehicles that it limits it's exposure by just having it in one technical forum.

Make sure you take some pictures along the way ;)
No problems, makes sense. It would be nice to see a more positive approach to the brand and maybe a few useful modification write up's might help things along a bit.

Its always a minority of people that give certain makes/models/engines etc a bad name just because they have had bad luck, forums never publicise the good points! Not all cars are lemons just because a handfull of people say they have had problems. Some things can be prevented such as the EGR failure and swirl flaps with a little bit of re-engineering, Google is your friend! There was loads of bad press about the Vectra B Dti which almost made me walk away. I'm glad i didn't because appart from the flimsy interior with numerous broken door handles it was the most dependable car i have ever owned! I will get lots of pictures up, hopefully tomorrow :)

My motto, if it doesn't work - Modify it!


·
Registered
Joined
·
63 Posts
Discussion Starter #4
First post updated with all the details of the guide, happy spannering! If someone could change the title to "HOW TO - Repair/Modify Swirl Flaps" it would be appreciated. I should just mention that i'm in no way connected with the supplier, he's just a helpfull guy supplying a good fix!

Cheers
Jimmy.


·
Registered
Joined
·
63 Posts
Discussion Starter #8
Great write up and pictures Jimmy (y)
Glad to be of service, i'm really pleased with how it all turned out and how easy it was to do. Its well worth doing for piece of mind. We (VXOn) have a mention and a link on his site now too so its a bit of publicity for the site.


·
Well-known member
Joined
·
28,308 Posts
Glad to be of service, i'm really pleased with how it all turned out and how easy it was to do. Its well worth doing for piece of mind. We (VXOn) have a mention and a link on his site now too so its a bit of publicity for the site.
Considering the manifold with a new swirl bar attached costs around £170 (+ a day to fit it) a touch over £37 (including postage and converted from Euros to Pounds) is quite a bargain :)

Oh and as the link on their site to buy this modification is a German Ebay listing, I've added that link along side your site link (y)


·
Rascal
Joined
·
12,267 Posts
Excellent stuff

Can you believe it took Vauxhall 6 weeks to diagnose and repair this on my dad's old Vectra SRI Diesel?


·
Registered
Joined
·
63 Posts
Discussion Starter #12
Considering the manifold with a new swirl bar attached costs around £170 (+ a day to fit it) a touch over £37 (including postage and converted from Euros to Pounds) is quite a bargain :)

Oh and as the link on their site to buy this modification is a German Ebay listing, I've added that link along side your site link (y)
Thats what i thought too, and no response from the email i sent to Pierberg either, i think they are avoiding me! Even if my manifold fails, i will still install this bar in place of the cheapo plastic one. I can't believe i'm the first in the UK to do this, people must have money to burn if they replace a manifold just because the rod has fallen off. Vx must think we are all stupid!


·
Registered
Joined
·
63 Posts
Discussion Starter #15
I'm amazed this hasn't had more interest. If it happened to a 70k car this quickly i would bet my left leg that there are literally 100's of cars with the same problem which could be easilly fixed to prevent the swirl flap being ingested by the engine. This is easy preventative maintenance!


·
Registered
Joined
·
12 Posts
I used the kit in February this year after falling upon them by accident during a Google search. I removed the throttle body and egr cleaned everything up with Normfest VC980 carb cleaner from Euro Car Parts (best cleaner ever and surprisingly cheap). Refitted everything with new gaskets plus the Fiat repair gasket and off I went. Took great care cleaning the inlet manifold and ensured the flaps all moved freely. Mine was a new / modified inlet manifold but has now done 70k since it was changed. Car drives amazing now, forgot how much power was there. Cost was the main issue at the time but after fitment I realised what a quality fit they are and far superior to the plastic bushes. Great write up by the way the only difference for me was I used a dremel to remove the old bushes.


·
Registered
Joined
·
219 Posts
Nice work fella, i will certainly be buying that piece of kit for my Signum just in case (y)


·
Registered
Joined
·
27 Posts
Great walk through. Saved me hundreds of pounds.

I bought these http://www.ebay.co.uk/itm/151087231742, yesterday for £32 including Special Delivery. Got them this morning, worked perfectly. Car running better so far. Hopefully the rod will not pop off again. Couldn't have done it without this post. Thank you

Edit: I was also getting a kick in the gear stick every time I'd put my foot on the accelerator pedal. This sorted that problem out too.

Edit: Only stopped kicking in the second, third and fourth gears. Still a bit of a kick in first, fifth and sixth gears. Will need to get the gearbox checked.


·
Registered
Joined
·
276 Posts
Hi aj82, tried looking up the guy who dealt with your inlet manifold just wanted to know a couple of things 1. is he still dealing on ebay 2. has your swirl bar caused anymore problems since been repaired? thanks
